BRIDGE BIKE WORKS
SURVEYOR
SURVEYOR
ONE FRAMESET - UNLIMITED RIDE OPTIONS

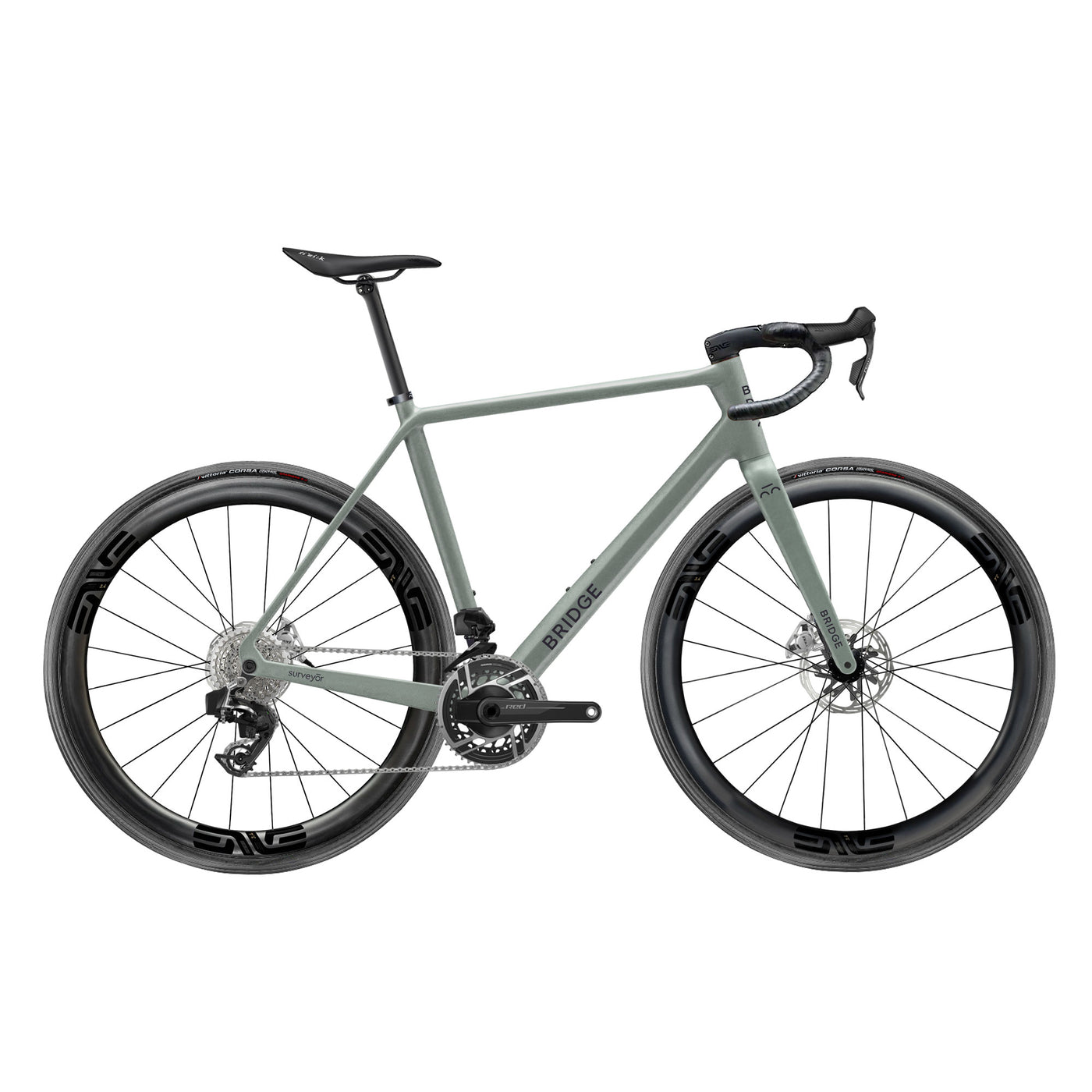

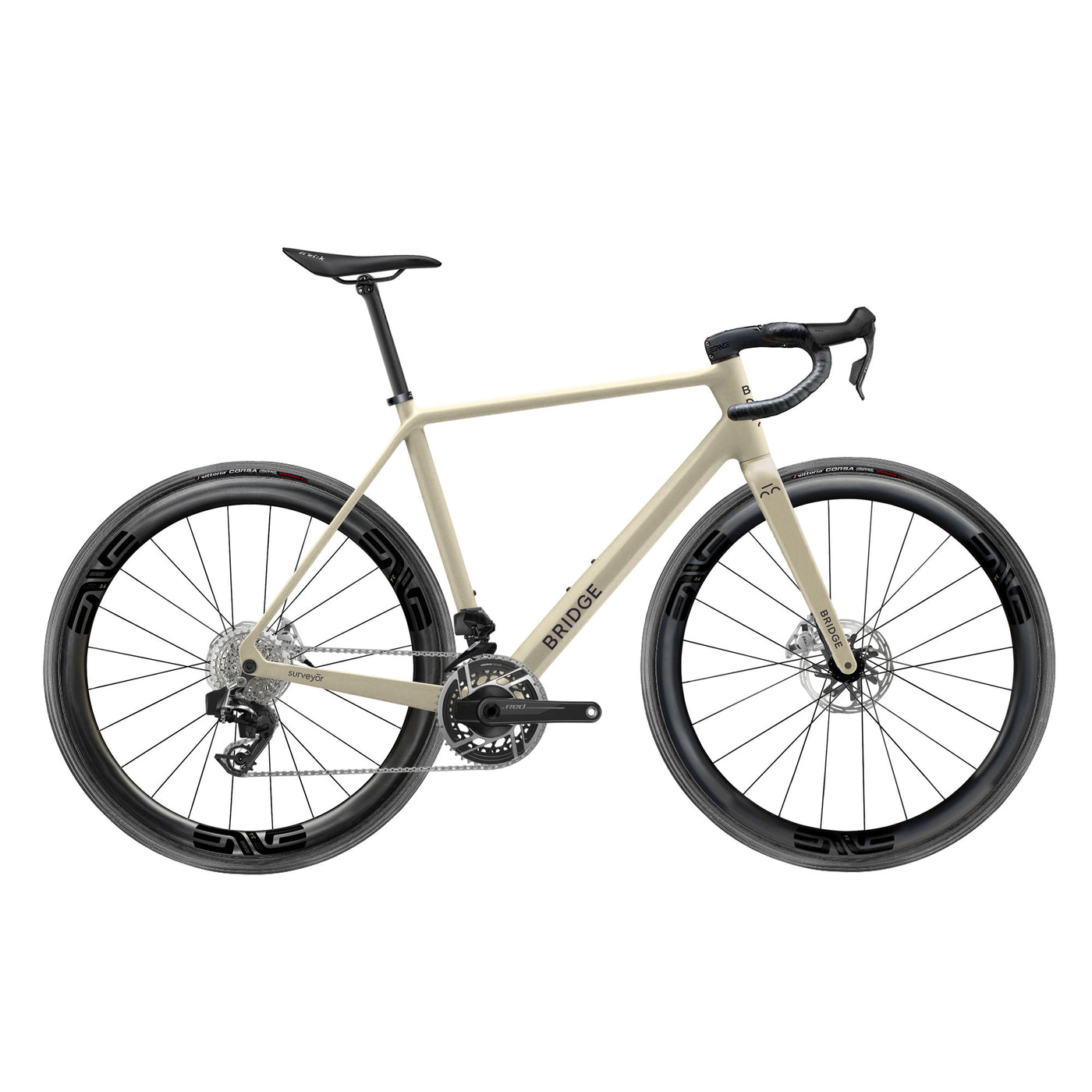

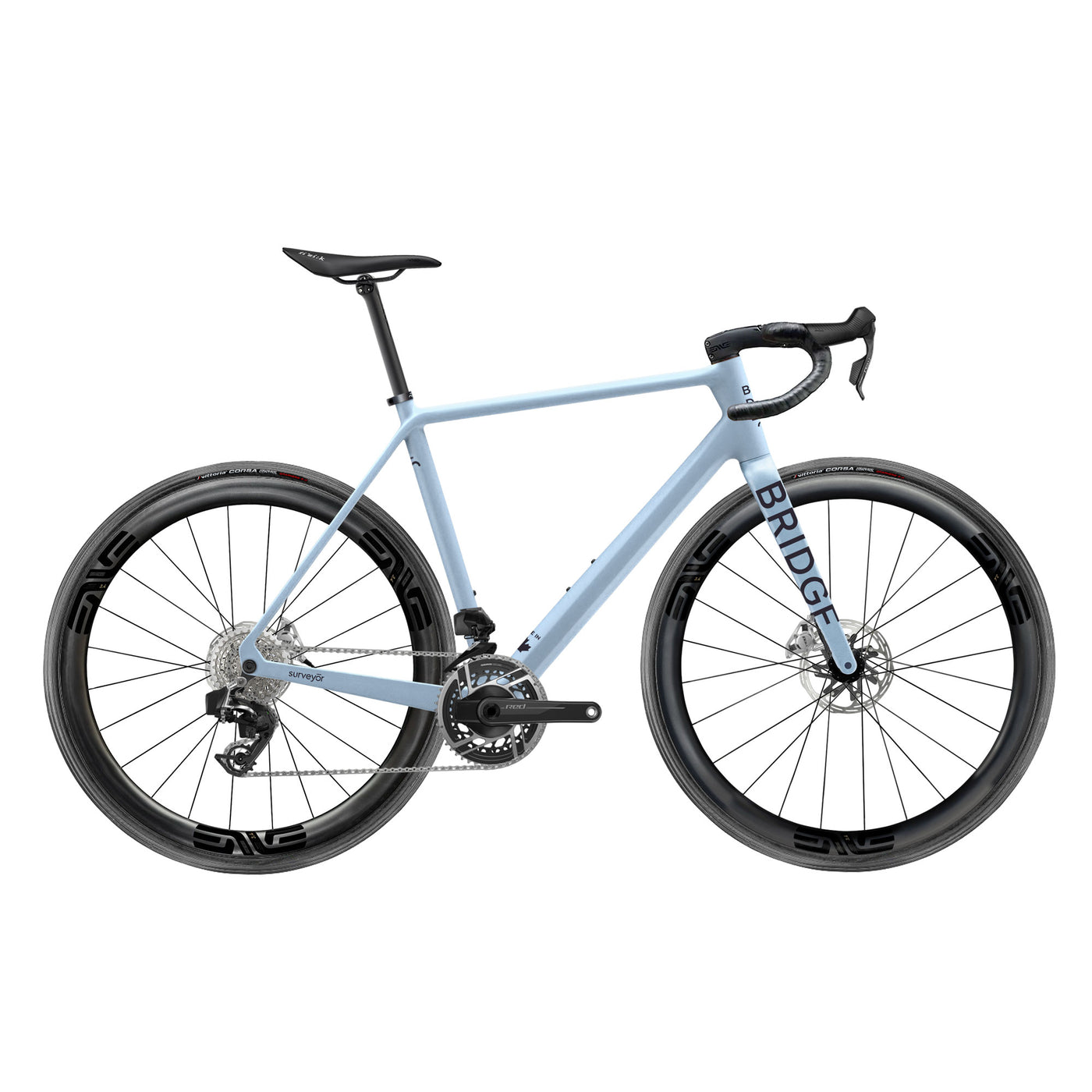

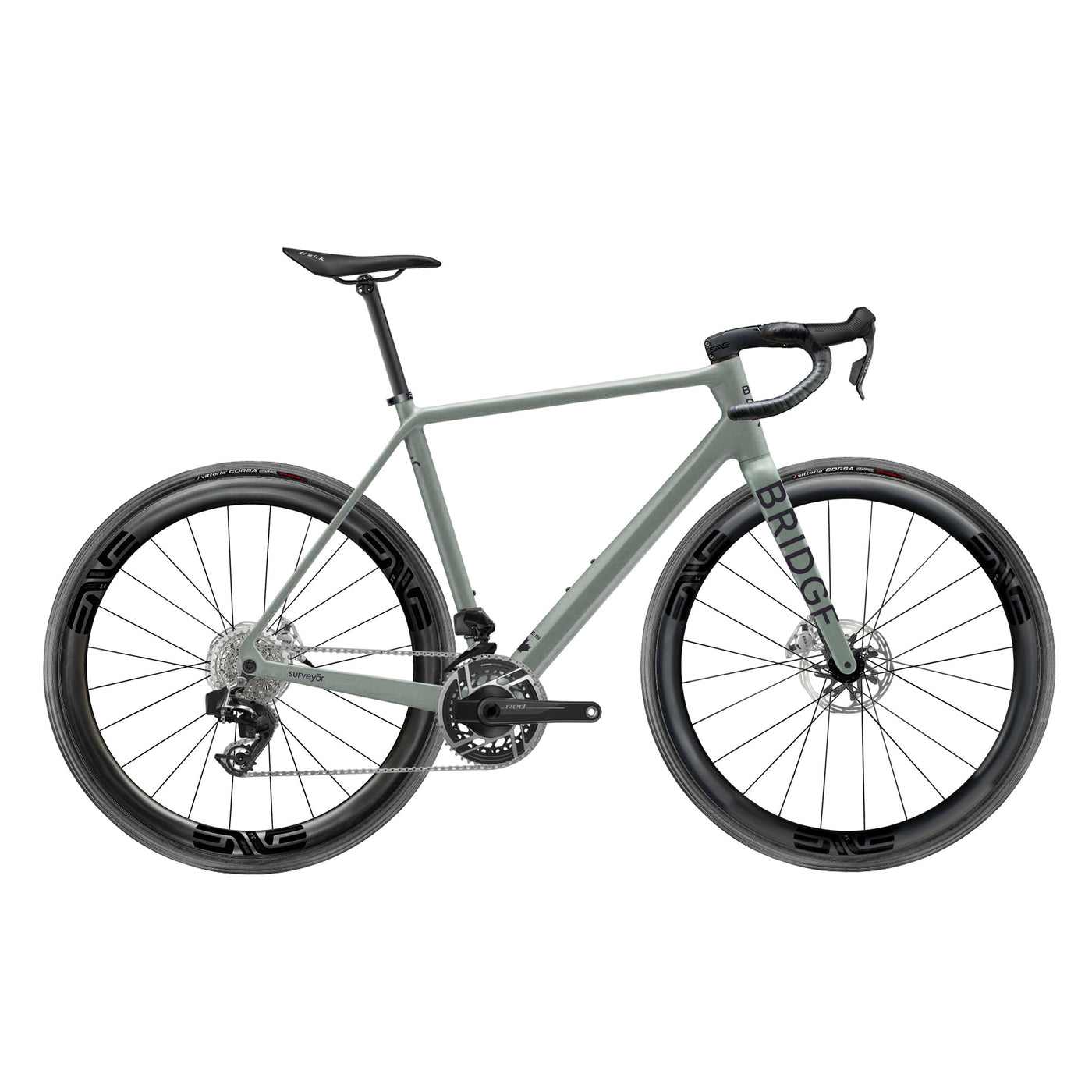

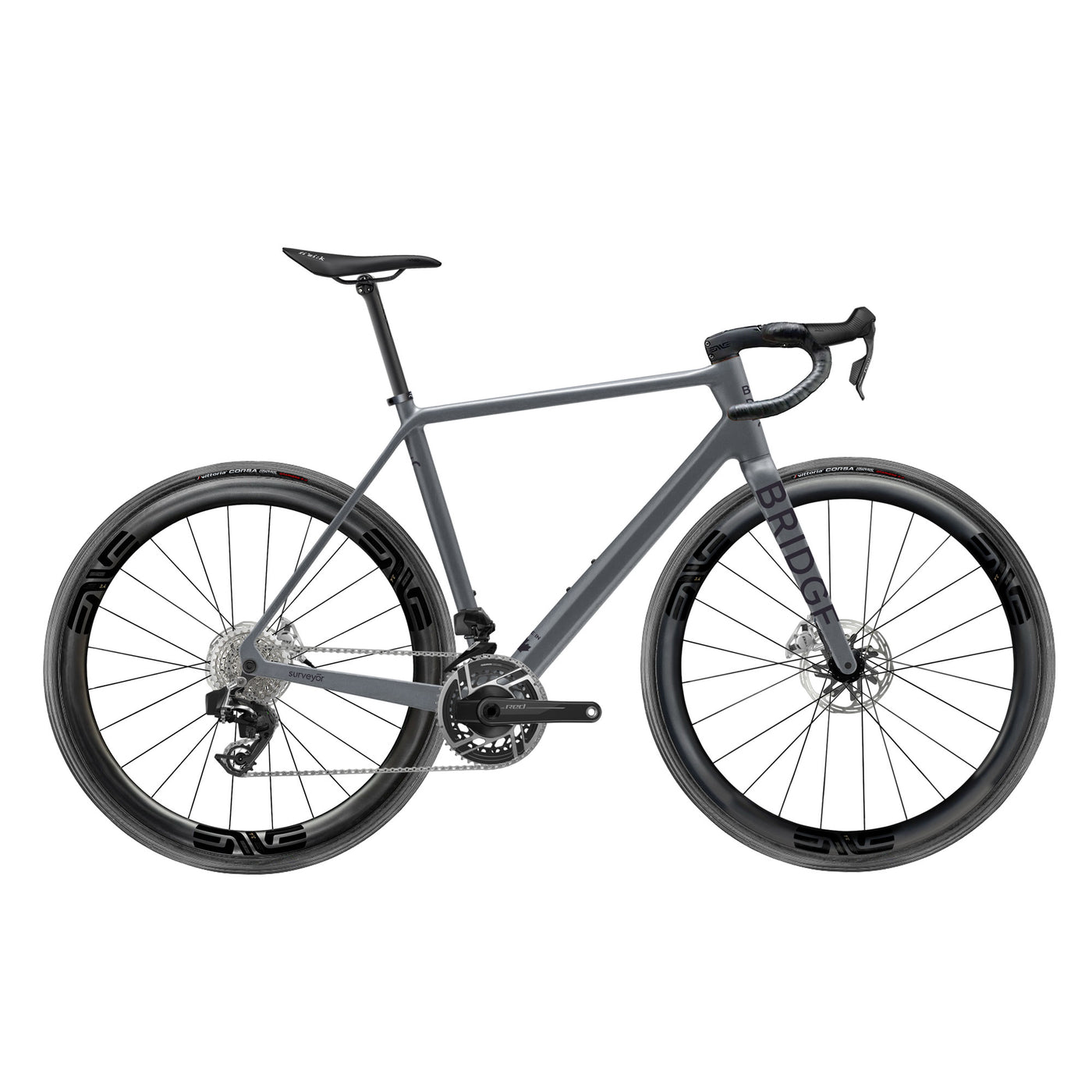

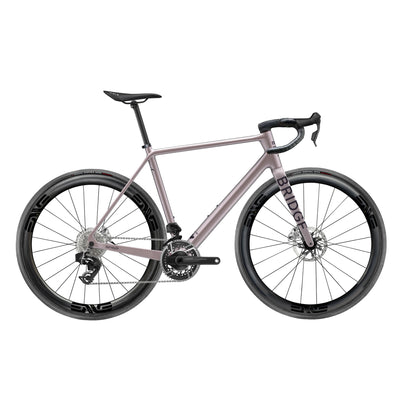

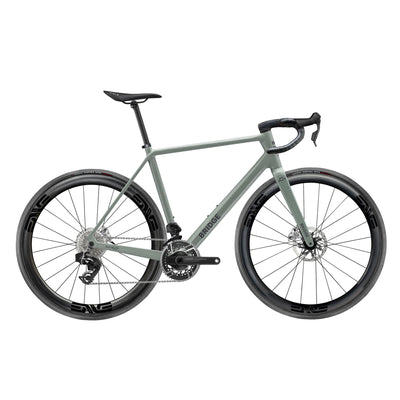

Surveyor - Red AXS
RESERVE YOUR BUILD SPOT NOW FOR $1000 DOWN
CURRENTLY BOOKING FOR: SUMMER 2025
FOR DEPOSIT: The price shown above is the full amount to be paid at production of your bike. Your deposit paid now would be $1000 ca.
* Parts, build and spec are subject to change without notice.
** Images are for reference only and may not reflect the final product.
*** For custom builds, contact us or reach out to your local dealer.
Add it here and we will build your Surveyor to your exact spec.
Don't know your fit? Don't worry, we can help you with it later.
100% Hand Made in Canada
100% Hand Made in Canada
Our obsessive quality control makes for the best BRIDGE possible
GROUPSET: SRAM Red AXS
WHEELSET: ENVE SES 3.4
HANDLEBAR: ENVE SES AR
STEM: ENVE Aero In-Route
SADDLE: Fizik Vento Argo R5
SEATPOST: ENVE 0mm
TIRES: Vittoria Corsa N.EXT
CASSETTE: SRAM Red
BOTTOM BRACKET: White Industries T47/86
AXLES: Robert Axle Project 12x100 & 12x142
TIRE SEALANT: Muc-Off
BAR TAPE: Black
CHAINSTAY PROTECTOR: Clear Adhesive
REAR DEAILLEUR HANGER: SRAM UDH
FRONT DERAILLEUR MOUNT: Clamp on
SEAT POST CLAMP: BRIDGE Bike Works
* Parts, build and spec are subject to change without notice.
** Images are for reference only and may not reflect the final product.
| Size 51 | Size 53 | Size 55 | Size 57 | Size 59 | |
|---|---|---|---|---|---|
| S-Stack | 510 | 539 | 568 | 596 | 625 |
| R-Reach | 376 | 383 | 391 | 398 | 405 |
| VTT-Virtual Top Tube | 512.7 | 527.4 | 548.5 | 568.9 | 584.2 |
| HT-Headtube | 90.1 | 119.7 | 145.3 | 173.6 | 203.0 |
| HA-Head Angle | 71° | 71.3° | 72.5° | 72.8° | 73° |
| SA-Seat Angle | 74° | 74° | 73.5° | 73° | 73° |
| BBD-BB Drop | 80 | 80 | 78 | 78 | 78 |
| WB-Wheelbase | 989.5 | 1004.2 | 1003.3 | 1016.6 | 1029.9 |
| FC-Front-Center | 585.7 | 600.2 | 598.7 | 611.9 | 625.1 |
| F-Fork A-C | 382.5 | 382.5 | 382.5 | 382.5 | 382.5 |
| FR-Fork Rake | 53 | 53 | 46 | 46 | 46 |
| T-Trail 40c Tire | 65.5 | 63.9 | 63.3 | 61.7 | 60.0 |
| T-Trail 28c Tire | 60.5 | 59.0 | 58.9 | 57.4 | 55.8 |
| CS-Chain Stay Length | 417 | 417 | 417 | 417 | 417 |
| SL-TT Slope | 10° | 10° | 8° | 8° | 8° |
| ST-Seat Tube C-T | 459.4 | 487 | 532.2 | 559.8 | 587.9 |
| Handlebar Width | 400 (380 C-C) | 400 (380 C-C) | 420 (400 C-C) | 420 (400 C-C) | 440 (420 C-C) |
| Stem Length | 90 | 90 | 100 | 100 | 110 |
| Seatpost Offset | 25 | 25 | 25 | 25 | 25 |
| Crankset | 170 | 170 | 172.5 | 172.5 | 175 |
| Saddle Width | 140 | 140 | 140 | 150 | 150 |
* Wheelbase and Front-Center measurements are non-linear due to the use of size specific forks.
* Seat tube has a 10 mm forward offset.
COMFORTABLE
AERO
STIFF
LIGHT
VERSATILE
It’s (almost) all about the seat-tube! We started with a sloped top tube (8-10 degrees) which allows for more seatpost exposure and thus more compliance. After much engineering and analysis we chose to use a round seat-tube for a 27.2 seatpost: it is lighter, more durable, but more than anything, it is MORE COMFORTABLE.
AERO
Why be slower if you don’t have to? We don’t give up comfort for our aerodynamics, especially since frontal aero is the key.
- Fully internal cable routing
- Wider fork stance for aerodynamics with bigger tires
- D shaped downtube
- Proprietary fork for ideal fork-to-frame transition
- Stack and reach within 5% of most race bikes
STIFF
The downtube is around 60mm in diameter, creating monstrous power transfer. Up front, the proprietary fork with tapered steerer was designed to rail without beating you up. Plus, there are near limitless cockpit combinations that you can choose based on your preferences.
LIGHT
At ~900 grams (no fork or paint) it is close to best in class for the all-road category. Because the Surveyor is handmade to incredibly high standards and quality controlled at every step - achieving light weights without sacrificing durability is a reality.
VERSATILE
BIG. TIRES. RULE. We promise. For most riding, from neglected Canadian roads to light gravel and dirt, a 30-35 mm tire is pretty much perfect. So we kept it simple, we designed a race bike that will take massive tires. Up to 40 mm... officially. Wink.
CAN I CUSTOMIZE THE SPEC OR BUILD OF MY BIKE?
We don’t offer full customization, but we do offer upgrades and add-ons. If you want a specific build or special componentry we recommend getting a frameset and having one of our dealers build it up. Feel free to contact us, and we can facilitate a connection with a dealer.
DO YOU OFFER CUSTOM GEOMETRY?
Not at this time. However we find that our geometry will fit most riders and can often be fine tuned with a different sized stem, handlebar and seatpost.
WHAT IS THE WIDEST TIRE I CAN FIT ON A SURVEYOR?
We have tested up to 40c treaded tires with no frame or fork interference. You might be able to fit wider, depending on your tire brand and rim width, or you might find that for very muddy courses a 38c tire might be better for clearance.
WHAT TYPE OF BOTTOM BRACKETS DOES SURVEYOR USE?
We designed Surveyor to use a T47-86 Threaded bottom bracket. These are a standard in the industry and are compatible with all brands of cranksets.
WHAT TYPE OF HEADSET DOES SURVEYOR USE?
Our frame and fork use a 52mm (1.5”) bearing (IS 52 45⁰/45⁰) top and (IS 52 36⁰/45⁰) bottom to allow for internally run cables. The fork steerer is a tapered 1-1/8” - 1-1/2”.
IS THERE AN OWNERS MANUAL FOR SURVEYOR?
Yes, here.
WHAT IS THE WARRANTY?
There is a lifetime warranty on the frame and fork against manufacturing defects, as well as a crash replacement discount. Full details here.
I'M THE SECOND OWNER OF MY BIKE. DO I HAVE A WARRANTY?
The lifetime warranty is only offered to the original owner of the bike. However, if you have any issues with the frame or fork, please contact us and we will be happy to help you out. Full warranty details here.
WHERE ARE BRIDGE BIKES MADE?
We manufacture the frame and fork in our facility in Toronto, Canada. More about that here.
CAN I GET CUSTOM PAINT?
We offer custom paint colours, learn more here. We do not offer full custom paint, but you can work with one of our approved Ready-To-Paint partners to have custom work done. Learn more here.
WHERE IS THE SERIAL NUMBER ON MY BIKE?
Your serial number is adhered on the underside of your bottom bracket.
DO THE HOSES AND WIRES NEED TO BE RUN INTERNALLY?
Yes, Surveyor is designed to only have them run internally from the headset back. You can run them fully internal through the bar and stem, or externally from the shifters using a top-cap entry method, but all cables or wires will be internal from the headtube back.
WHAT DRIVETRAIN WORKS BEST ON SURVEYOR?
You can use either 1x or 2x drivetrains. If running 1x, remove the front derailleur clamp.
CAN SURVEYOR BE BUILT WITH MECHANICAL GEARS AND BRAKES?
Yes, you can use mechanical 1x from any brand or 2x gearing, as long as it’s Shimano. SRAM and Campagnolo use a different front derailleur setup, so those can only be 1x systems.
CAN SURVEYOR BE USED AS A GRAVEL BIKE?
Yes. We have tested Surveyor on all types of terrain, from smooth paved roads to off-road single track.
DO I NEED ANY SPECIAL TOOLS TO ASSEMBLY SURVEYOR?
There are no proprietary tools that you need to assemble a complete Surveyor or a frameset. Everything is standard to the cycling industry. Most parts use basic allen keys for installation or adjustment. A good torque wrench is a must to ensure proper specs are met, for the safety of the rider and bike. Check out the owners manual for helpful tips. We recommend connecting with a professional mechanic to ensure your bike is assembled safely.
WHERE DOES BRIDGE SHIP?
We ship complete bikes and frame sets globally.
HOW DO I FIX ANY SCRATCHES OR DAMAGE TO MY FRAME?
We use AkzoNobel Aerospace Paint on our bikes which is much more resistant to chips and scratches. If you do notice any damage, the best option is to contact us and we will work with you to determine the best steps for repair.
CONTACT ONE OF OUR DEALERS
SUPPORT YOUR LOCAL SHOP
Contact one of our existing dealers or ask your preferred shop to carry Bridge. We are always looking to expand our network and happy to talk with stores around the globe.
BUILD YOUR DREAM BIKE
We offer a great selection of complete Surveyors, but if you want something custom, your local store is the best way to get it. The options are endless. Build it however you want it.
GET YOUR SURVEYOR FASTER
Our dealers have pre-ordered Surveyors, and many have some in-store already. Contact them to see what is available and what they have coming. Jump ahead in the line and get on the road sooner.
ABOUT THIS BUILD
We chose every component for this build to work seemlesly together and provide the best ride at a great price point.
* Parts, build and spec are subject to change without notice.
** Images are for reference only and may not reflect the exact final product.
SRAM Red AXS
SRAM RED eTap AXS offers wider range and closer progression, so you’re always in the right gear. A quiet, secure and smooth ride, whatever the terrain. A system that does exactly what you want, when you want. And it’s still wireless.
ENVE SES 3.4
Versatile, aero, light, and fast. The SES 3.4 has been a staple in the SES wheel family, and the newest iteration takes the best features of the previous generation SES 3.4 and 3.4 AR to make the ultimate modern road wheelset. There’s simply nothing more versatile than the SES 3.4.
ENVE SES AR
AR means the handlebar will deliver comfort and confidence over any road surface. Borrowing design cues from Enves successful SES Aero Road bar, Compact Road bar, and G Series bar, the SES AR Handlebar features compound flared drops that provide a wider stance for technical riding and descending while maintaining easy access to the controls.
Vittoria Corsa N.EXT
Race day, interval training, multi-summit days, unsupported base miles – the Corsa N.EXT Tubeless-Ready combines high cornering grip, low rolling resistance, and the ultra-durable construction of a daily workhorse. Those qualities are complemented by the puncture-resistant tubeless design.
Fizik Vento Argo R5
The Fizik Argo R5 is a performance racing saddle with a short-nose design that improves stability and allows for a more aggressive, aero riding position. It adds just enough comfort on road or gravel.
INTRODUCING OUR PATENT PENDING
INTEGRALLY THREADED CARBON BOTTOM BRACKET
Through a complex laminating and molding procedure we have been able to produce molded carbon fiber threads into our bottom brackets.
Proprietary
frame and fork
We designed the Surveyor frame to pair perfectly with the Surveyor All-road fork. Not only do they look great together, speaking the same design language, but they are tuned to complement each other's ride characteristics too. They both have the perfect amount of stiffness when you need it with the right vibration dampening too. Their geometry was designed in unison too, so the handling is refined and elegant on or off paved roads.
Perfectly
LIght & Stiff
With a frame weight of ~900g for our size 55, the Surveyor is among the lightest all-road bikes. There are no unnecessary pieces anywhere in the construction, as every layer of unidirectional carbon is where it should be, and there are hundreds of them. Our engineers ,composites experts and riders explored lay-up after lay-up to be sure they had landed on the best recipe possible - this is at the soul of the Surveyor.
Fully Concealed
Internal cable routing
You wouldnt want to drive a car with brake lines and electronic wires hanging out in the wind would you? So why acept it on your bike? We chose a non-proprietary system for our routing meaning you have your pick of industry standard cockpits. From bar to stem to frame, your hoses and wires are concealed making for a faster, cleaner, and safer ride.
BRIDGE BIKE WORKS
ALL-ROAD INTEGRATED FORK
It’s one of the only carbon forks made in North America by some of the best in the industry. We believe a modern all-road fork needs to be stiff enough to handle the heaviest sprint, compliant enough to cruise through a rock garden, and engineered to a standard beyond others to keep weight low and durability high.
Clearance for 40c tires
Modern testing techniques have proven that larger tires are more comfortable, safer and faster than their smaller, harder ancestors. We wanted to make sure Surveyor was truly "all-road" and designed it to accept up to 40c tires. Our narrow chainstays do the heavy lifting while maintaining a classic silhouette without needing to be offset or dropped.
Round Seatpost
Little known fact: Seatpost deflection does more for comfort while riding than tire size and pressure combined. Surveyor was designed with a sloping top-tube so it would have more seatpost exposed, and in turn, provide more vertical compliance. We then spec every Surveyor with a carbon seatpost, for ultimate comfort.
Threaded bottom bracket
Traditionally, bottom brackets were threaded into the frame. The industry momentarily switched to press-fit, where frames relied on friction and pressure to stay engaged and creak free. Now, the T47 threaded bottom bracket has taken the best of both these and has become the preferred choice for bike manufaturers big and small.
Unique
All-Road Race Geometry
Geometry designed for all-roads with lower BB drop and sloping top tube. We designed Surveyor to also have the perfect chainstay length, 417mm. All these combine to create a capable, confident ride that is also fast on the road.
