READY-TO-PAINT
READY-TO-PAINT
THE BEST WAY TO CUSTOMIZE YOUR BRIDGE
Our Ready-to-Paint program is built around the leading custom painters in the industry
If you are looking to do a custom painted frame, reach out to a BRIDGE dealer or send us a message and we can help facilitate the connection.
Made for you
CHOOSE YOUR SURVEYOR
We will build your Surveyor and ship it direct to your painter of choice.
Contact Us
Avery Dennison Hi-Bake Vinyl

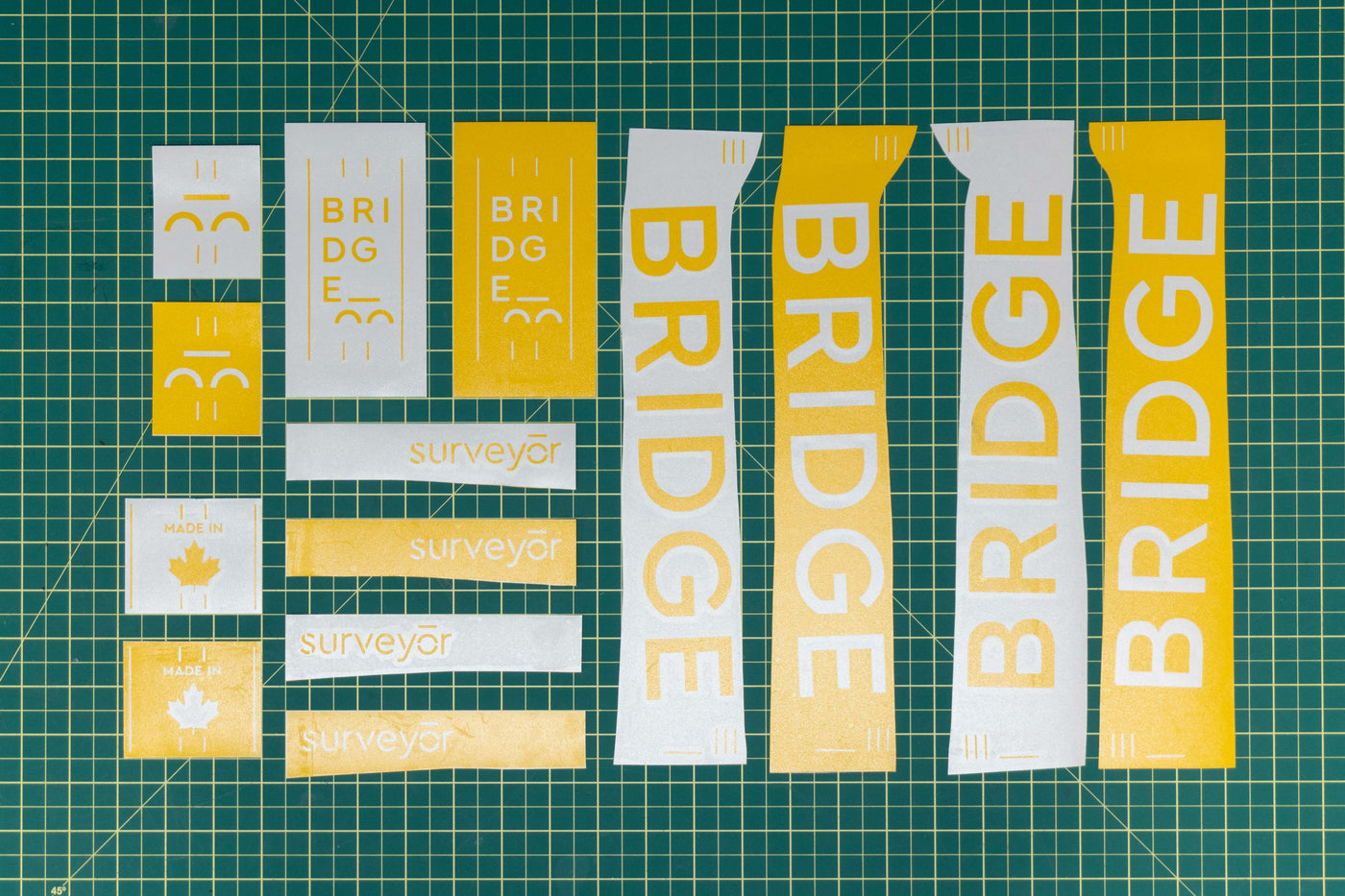

ALL FRAMESETS INCLUDE TWO SETS OF MASKING
ALL FRAMESETS INCLUDE TWO SETS OF MASKING
Positive and negative masking included
READY TO PAINT BRAND GUIDELINES
We make it easy to add our required branding to any BRIDGE frame and fork.
Just follow the steps below for each vinyl graphic mask and paint away. We provide the vinyl, you provide the paint, and your client gets something amazing.
Headtube
Premask Application
Align the clear pre-mask to the top and bottom of the headtube.
Graphic alignment
Center the hash marks to the headube. Note: The logo with look off center as it is asymetrical.
Final Placement
Remove the hash marks and ensure proper alignment.
Seat Tube
Premask Application
Center the pre-mask horizontally on the tube and align the bottom with the curved junction where the down tube meets the seat tube.
Graphic alignment
Remove the pre-mask and ensure proper horizontal alignment.
Final Placement
Remove the hash marks and ensure proper alignment.
Down Tube
Premask Application
Use this section to explain a set of product features, to link to a series of pages, or to answer common questions about your products. Add images for emphasis.
Graphic alignment
Align the vertical hash marks to run parallel with the sharp corner of the tube.
Final Placement
Remove the hash marks and ensure proper alignment.
Chainstay Non-Drive Side
Premask Application
Align the right side of the pre-mask with the edge of the axle hole.
Graphic alignment
Ensure the top and bottom edge of the pre-mask run parallel with the tube to the graphic is vertically centered.
Final Placement
Remove the hash marks and ensure proper alignment.
Chainstay Drive Side
Premask Application
Align the left side of the pre-mask with the edge of the axle hole.
Graphic alignment
Ensure the top and bottom edge of the pre-mask run parallel with the tube to the graphic is vertically centered.
Final Placement
Remove the hash marks and ensure proper alignment.
Fork Non-Drive Side
Premask Application
The fork graphics are side specific, ensure the name reads correctly from left to right. The graphic should be horizontally centered on the taper of the fork blade.
Graphic alignment
Align the horizontal hash mark to the axle hole. This ensures matching vertical placement between drive and non-drive sides.
Symmetry
The three vertical hash marks help to ensure symetrical placement along the front of the fork blade.
Final Placement
Remove the hash marks and ensure proper alignment.
Fork Drive Side
Premask Application
The fork graphics are side specific, ensure the name reads correctly from left to right. The graphic should be horizontally centered on the taper of the fork blade.
Graphic alignment
Align the horizontal hash mark to the point of the axle insert. This ensures matching vertical placement between drive and non-drive sides.
Symmetry
The three vertical hash marks help to ensure symetrical placement along the front of the fork blade.
Final Placement
Remove the hash marks and ensure proper alignment.
HAVE QUESTIONS?
Please contact us with any questions about the graphics, vinyl masking or application. We are happy to help you get it right. Please email evert@bridgebikeworks.com.
A file containing all the required graphics can be downloaded for reference or to cut your own masking.
